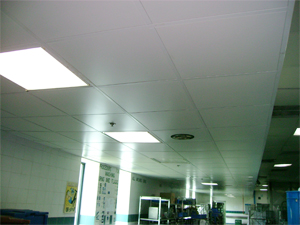

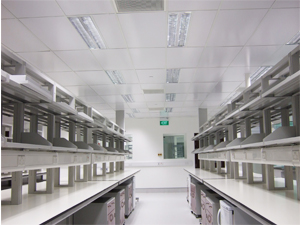

LAY ON CEILING SYSTEM
The panels are simply laid on the exposed suspension grid system, allowing simple and easy access to the plenum. This is especially useful for areas that require frequent maintenance.
Material : 0.5 – 0.8mm thick aluminium plate.
Surface Finish : Polyester powder-coated.
Dimension : 595mm x 595mm
Colour : White and other colours available.
Panels are either plain or perforated.
The standard perforation is 1.8mm dia. holes on 3.3 mm diagonal pattern giving a 19% open area. Other range of perforation is also available.
The back of the perforated panels come with acoustic material, SOUNDTEX C 1986 S/W. This material is non-flammable and meets the requirement of building material class B1. This material has been approved by British (BS) and European (EN) standards.
SOUNDTEX acoustic non-woven C 1986, in conjunction with perforated steel sheet panels, has been tested for its sound absorption performance by The Building Test Centre in East Leake, Loughborough, UK under the report numbers BTC 3327 A to BTC 3329 A. In accordance with BS EN 20 354 : 1993 (ISO 354 : 1985) on 10th September 1997.
The Noise Reduction Coefficient (NRC) was calculated in accordance with ASTM C423-90a.
The degree of Sound Absorption was determined as follows for three perforation patterns with a ceiling cavity of 400mm.
1.8mm diameter holes with 20% open area
1.6mm diameter holes with 25% open area
2.5mm diameter holes with 16% open area
TALENT ceiling panels have been tested by PSB in accordance with British Standard 476, Pt 6 : 1989 “method of test for Fire Propagation for products” and BS 476, Pt : 1997 on Flame Spread. They also meet the stringent requirements of Class O fire rating.
The Suspension System
All main and cross carriers as well as brackets and clips are made of galvanized steel.
Rod Hanger : 4mm hanger with adjustable clip.
Angle : Aluminium capping wall angle or painted steel wall angle.
Size : 24mm x 24mm
Each panel is protected by an individual plastic cover. Each carton box contains 20 panels.
Awarded ISO 9001
