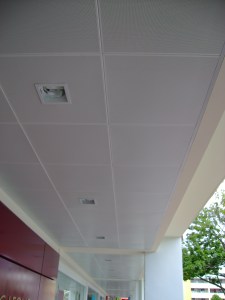

CLIP-IN Ceiling System
These concealed suspension systems allow easy snap in the panels to achieve a flat and uniform ceiling surface without the use of any tools. Ceiling panels are designed for easy removal and re-installation. Such panels are made of polyester powder-coated aluminium plates, that are available in different thickness ranging from 0.5 to 0.8mm.
Panels come with or without perforation. Down lightings, conventional lighting and other M&E works can be incorporated easily into the panels.
Perforation
Panels are either plain or perforated.
The standard perforation is 1.8mm dia. holes on 3.3 mm diagonal square pattern giving a 19% open area. Perforation with 2.3mm, 5mm and other diameters are also available
Sound Absorption
The back of the perforated panels comes with acoustic material, SOUNDTEX C 1986 S/W. This material is non-flammable and meets the requirement of building material class B1.
Din (German Industrial Standard) ,
EN (European Standard)
SOUNDTEX acoustic non-woven C 1986, in conjunction with perforated steel sheet panels, has been tested for its sound absorption performance by The German Fraunhofer Institute for Constructional Physics (IBP) in Stuttgart under the certification Mark P-BA 290/1996 to P-BA 292/1996 in accordance with DIN/EN 20 354 : 1993.
The Noise Reduction Coeffcient (NRC) was calculated in accordance with ASTM C423-90a.
The degree of Sound Absorption was determined as follow for three perforation patterns with a ceiling cavity of 400mm.
| Frequency |
125
|
250
|
500
|
1000
|
2000
|
4000
|
|---|---|---|---|---|---|---|
| Abs. Coeff |
0.45
|
0.80
|
0.65
|
0.72
|
0.78
|
0.74
|
| Frequency |
125
|
250
|
500
|
1000
|
2000
|
4000
|
|---|---|---|---|---|---|---|
| Abs. Coeff |
0.64
|
0.80
|
0.58
|
0.70
|
0.76
|
0.75
|
| Frequency |
125
|
250
|
500
|
1000
|
2000
|
4000
|
|---|---|---|---|---|---|---|
| Abs. Coeff |
0.60
|
0.83
|
0.56
|
0.67
|
0.75
|
0.73
|
The Panels
Material : 0.5 – 0.8mm thick aluminium plate. Other thickness available on request.
Weight : Average~1.83kg per square meter
Surface Finish : Polyester powder-coated
Dimension :
300mm x 600mm
600mm x 600mm
300mm x 300mm
and other sizes
Colour : White or other colours available on request.
1 – Closed frame aluminium panel
2 – Spring tee runner
3 – Spring tee runner suspension bracket
4 – 38 Main carrier
5 – Expansion bolt
6 – 38 Main carrier suspension fitting
Fire Resistance
TALENT Ceiling panels have been tested by PSB in accordance with British Standard 476, Pt6 : 1989 “method of test for fire Propagation on products” and BS 476, Pt 7 : 1997 on Flame Spread.
They also meet the stringent requirements of Class O fire rating.
The Suspension System
All main and cross carriers as well as brackets and clips are made of galvanized steel.
Rod Hanger : 4mm hanger with adjustable clip.
Angle : Aluminium capping wall angle or painted steel wall angle.
Size : 24mm x 24mm
1 – Closed frame aluminium ceiling bracket
2 – Spring tee runner
3 – Spring tee runner suspension bracket
4 – 38 main carrier
5 – 4mm Hanger rod
6 – 38 Main carrier suspension fitting
7 – Spring clip
Packing
Each panel is protected by an individual plastic cover. Each carton box contains 20 panels.
Quality System
Awarded ISO 9001
